SPECIFICATIONS FOR SERVO POWER FEED
TYPE 150

Semi-automatic machining on Class 1 mills to 3hp.


Peak torque: to 150 in.lb/17.m (full-wave SCR control compound DC motor).


Intermittent torque: 120 in/lb/13.6 N.m.


Continuous torque: 100 in.lb/11.3 N.m.


Variable feed rate: .50-35 ipm/13-889 mmpm.


Rapid traverse: 35 ipm/889 mmpm.


Gear reduction ratio: 72:1.


Smooth surface finish at speeds as low as .5 ipm/13 mmpm at full torque.


Superior speed regulation, ramping, dynamic breaking, friction saftey clutch, and limiting circuit protection.


Electrical: 110V, 50/60 Hz, 2.5A


Approx. weight: 15lb/6.8 kg.




pad
Click to enlarge

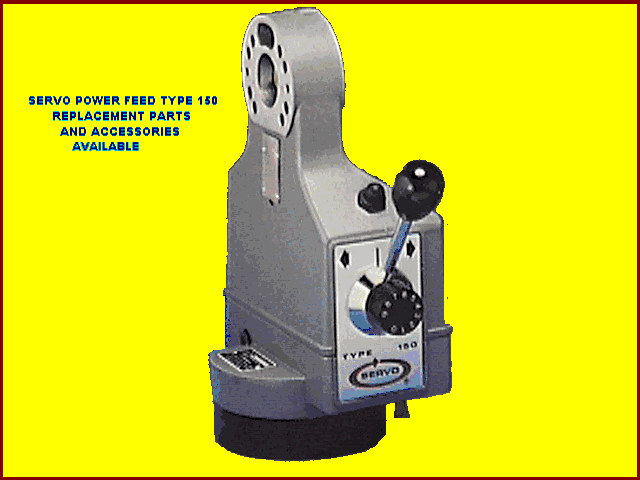

SERVO POWER FEEDS TYPE 150
pad
Servo Power Feeds Type 150 and Accessories are available for many Milling Machine Types. For best Selection and Pricing call and speak to one of our Technical Staff Members at 1-800-726-8438. Double click on picture for a better view.pad
ECF T-150pad$655.00pad
